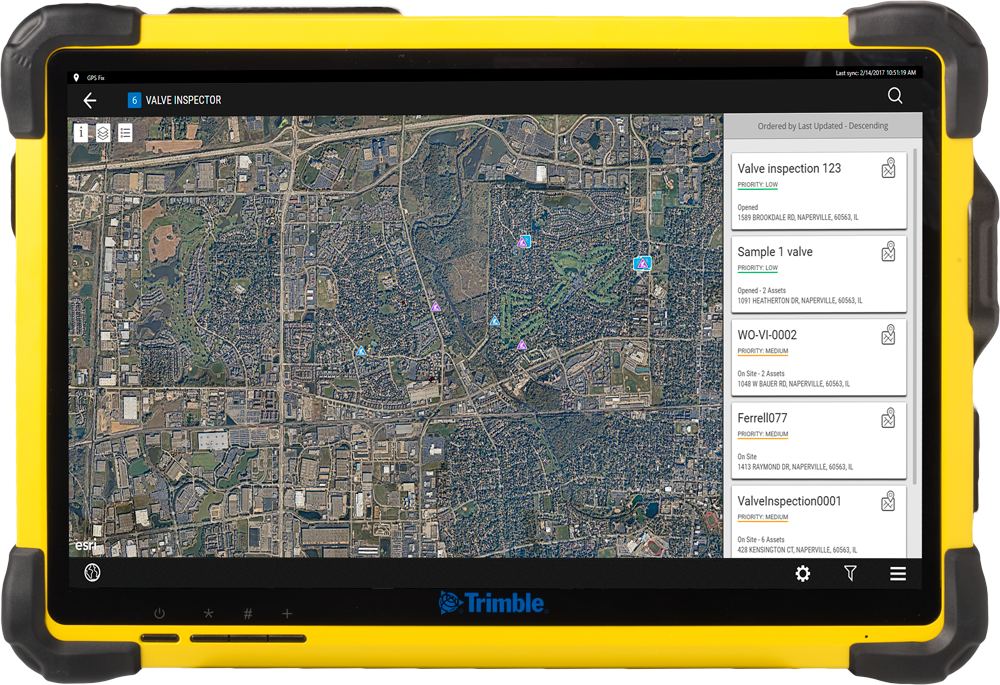

Trimble brings the advantages of fast computing power and a large screen to the field with the Trimble® T10 tablet







Combined with integrated GNSS capabilities, the Trimble T10 is a powerful, rugged device created for survey fieldwork and GIS data collection. At the same time it supports demanding desktop applications to provide a single-device solution for efficient data processing on the job.

Designed to work all day even in difficult environments and conditions, the Trimble T10 enables utility professionals in a variety of applications to efficiently and reliably collect and process data for analysis and visualization on a significantly larger display using the latest Windows® 10 platform.





Fast and Powerful Computer Processing
The fast and powerful processing engine of the Trimble T10 lets you carry out challenging field without difficulty. Rapid processing of mapping data, asset inspections, imagery, IoT monitoring data and meter reads ensures the T10 won’t slow you down. Save time and money and be more productive by having your field work completed quickly with a high degree of detail, increasing the value of your data.



Enhanced Maps and Data Visualization
Whether performing data collection, field inspections and asset inventories, or collecting attributes, coordinates and more, the generous 10.1-inch screen that reads in bright sunlight ensures easy viewing of your data. The higher screen resolution offers enhanced map interaction, providing accurate information on which to base informed decisions in the field.





Latest Windows Desktop Operating System
Make the field your office and enjoy the use of full Windows desktop applications on the Trimble T10 wherever you are. Supporting the Windows 10 operating system, the tablet works well with any modern application you need to get your field tasks completed and processed without using a separate laptop computer or returning to headquarters.

Additionally, for a complete field to office workflow solution, utilize Trimble Unity™ to create work orders, forms and reports, manage and update your data, dispatch work orders, as well as view and proactively respond to alarms and events related to remote monitoring data.  The Trimble T10 also supports Telogers for Windows allowing direct downloading of telemetry data from Telog RTUs.



All Day Rugged Field Operation
The Trimble T10 is built tough. Unlike modern consumer-grade tablets, the IP65-rated Trimble T10 with military-grade ruggedness certification will withstand anything the elements throw at you. Protected against rain, mud, dust, sand, and extreme temperatures— as well as drops and shocks—your collected data is secure no matter what you encounter. Plus, the hot-swappable long life battery will keep going all day so you can get the job done.
Wherever you go, whatever conditions you face, the powerful and efficient Trimble T10 tablet won’t let you down.



BENEFITS


Field & Office Capible
Intel® 6th Gen Core™ i7 enables fast & powerful processing to support demanding field & office apps with Windows 10

10” Display
Enhanced interaction with detailed map and imagery through large 10.1-inch, high resolution display

High Accuracy Mapping
Real time accuracy of 2 - 5m  typical with the intergrated 72 channel GNSS antenna

IP65 Rating
Rugged form factor and long battery life for all day field operation even in tough environments




Applications


Direct Connect and Data Downloading from Trimble Telog RTUs

Trimble brings the advantages of fast computing power and a large screen to the field with the Trimble® T10 tablet

Learn More


Asset Management and High Accuracy Mapping

Combined with integrated GNSS capabilities, the Trimble T10 is a powerful, rugged device created for asset management and high accuracy mapping.

Learn More



T10 Overview Video



Specifications

Product Models T10 (Wi-Fi) T10 (4G)
WLAN (Wi-Fi) Yes Yes
4G Data No Yes
Cirronet Radio No No
Memory storage (SSD) 256 GB 512 GB
GNSS Receiver U-blox Neo-M8T U-blox Neo-M8T


STANDARD FEATURES

System

Intel® 6th Generation Core™ i7 processor
Intel HD Graphics 520
8 GB RAM1
256 GB Storage (4G version: 512 GB)2
10.1” LED-backlight screen with 10-point capacitive multi-touch
Active Pen support
5 Megapixel rear camera
High-sensitivity GNSS/SBAS receiver and antenna
Wi-Fi 802.11ac, 2.4GHz / 5GHz dual-band
Bluetooth® v 4.0 LE
4G and Cirronet radio versions available
User replaceable battery (standard or enhanced capacity), hot swappable
Integrated speaker and microphone NIST (National Institute of Standards and Technology) compliant BIOS
TPM (Trusted Platform Module) 2.0 support
Rugged ABS + PC plastics and magnesium-aluminum alloy enclosure
Rubber bumpers on each corner for handling protection
MIL-STD-810G Shock, Drop and Vibration
IP65 Dust and Moisture Ingress Protection Operating System
Microsoft® Windows® 10 IoT Enterprise
Languages available: Arabic (Saudi Arabia), Bulgarian (Bulgaria), Chinese (Simplified, China), Chinese (Hong Kong), Chinese (Traditional, Taiwan), Croatian (Croatia), Czech (Czech Republic), Danish (Denmark), Dutch (Netherlands), English (United Kingdom), English (United States), Estonian (Estonia), Finnish (Finland), French (France), French (Canada), German (Germany), Greek (Greece), Hebrew (Israel), Hungarian (Hungary), Italian (Italy), Japanese (Japan), Korean (Korea), Latvian (Latvia), Lithuanian (Lithuania), Norwegian, Bokmål (Norway), Polish (Poland), Portuguese (Brazil), Portuguese (Portugal), Romanian (Romania), Russian (Russia), Serbian (Latin, Serbia), Slovak (Slovakia), Slovenian (Slovenia), Spanish (Spain, International Sort), Spanish (Mexico), Swedish (Sweden), Thai (Thailand), Turkish (Turkey), and Ukrainian (Ukraine). Additional languages are available as Language Interface Packs.

COMMUNICATIONS

 Cellular: 4G LTE, data only3 (not available on Wi-Fi only version)
Wi-Fi 802.11ac, 2.4 GHz/ 5 GHz dual band
Bluetooth 4.0 LE
Cirronet (Cirronet version only)
USB 3.0

Standard Accessories

Lanyard
Screen protectors (x2)
A/C charger

Optional Accessories

Active pen
Detachable full keyboard with trackpad (for hybrid 2-in-1)
Enhanced capacity battery
Office dock with ethernet and dual-display support
Pole bracket with cradle



TECHNICAL SPECIFICATIONS

Physical

Size 198 mm x 283 mm x 40 mm (7.7 in x 11.1 in x 1.6 in)
Weight 1.4 kg (3.08 lbs.) (Wi-Fi only version with standard battery)
Processor Intel® Core™ i7, Clock frequency: 2.5 GHz
Memory 8 GB SDRAM
Storage 256 GB (non-volatile), (512 GB for 4G version)
User Interface Power button, RF switch, 3 programmable keys
Power / Battery Status LED, On screen keyboard, Optional detachable full keyboard with trackpad
Battery 11.4 V, 5400 mAh (standard capacity), hot swappable
11.4 V, 7980 mAh (enhanced capacity)
Battery life (enhanced capacity) > 12 hours @ 20° C with GPS on4
Charging time 4.5 hours 4

ENVIRONMENTAL

Temperature
Operating –20 °C to +60 °C (–4 °F to 140 °F)5
Storage –55 °C to +70 °C without battery (–67 °F to 158 °F)
Humidity 0% - 90% non-condensing
Water & dust proof IP65
Vibration / Shock resistance MIL-STD-810G
EMI / EMC tolerance MIL-STD-461F

Input/Output

Display     LED backlight scratch-resistant, auto rotate Size. 10.1” capacitive multi-touch
Resolution     1920x1200 px
Brightness    800 Cd/m²
Audio    Built-in microphone and speaker. Audio jack 3.5 mm
I/O    USB 3.0
AC / DC Adapter    Input: 100-240V AC, Output: 19V DC, 3.42A
Digital camera (outward facing)    5 MP with auto-focus, white balance, gain control and exposure control Sensors
E-Compass, Accelerometer

GNSS

Internal antenna: 72 channels GPS L1 C/A, GLONASS, Beidou, QZSS, SBAS
Integrated real-time SBAS6 (WAAS/EGNOS/MSAS/GAGAN)
Dual constellation system GPS/GLONASS or GPS/Beidou
Accuracy Specifications (Horizontal RMS) 7
Real-time SBAS 2–5 m typical

  1. 1 GB = 1,000,000,000 bytes.
  2. Total usable memory will be less depending upon actual system configuration.
  3. Frequencies and channels depending on 4G radio version.
  4. Approximate charging time for standard battery. Battery operation and recharge times will vary based on many factors, including screen brightness, applications, features, power management, battery conditioning and other settings or preferences.
  5. Tested under MIL-STD-810G method 501.6, Procedure II, and method 502.6, Procedure II. Battery capacity is reduced at lower temperatures or extremely high temperatures. Batteries should neither be charged at temperatures below 32 °F (0 °C ) nor temperatures above 113 °F (+45 °C) to avoid impacting battery longevity and performance.
  6. SBAS (Satellite Based Augmentation System), where available.
  7. Horizontal Root Mean Squared accuracy. Requires reasonable multipath conditions. Ionospheric conditions, multipath signals or obstruction of the sky by buildings or heavy tree canopy may degrade precision by interfering with signal reception.

Caution: Do not expose bare skin to this product when handling this unit in extreme hot or cold environments. Do not charge batteries in extreme hot environme
