Accuracy for everyone

The Trimble R1 is a rugged, pocket-sized GNSS receiver that provides sub-meter precision to users of any Bluetooth connected mobile device, including smartphones, tablets, or more traditional integrated data collection tools such as a Trimble handheld computer.

Multiple Constellation Support Provides Global Reach.

The R1 supports multiple GNSS constellations, including GPS, GLONASS, Galileo, QZSS and BeiDou, to provide a truly global solution. The R1 receiver includes the ability to utilize Satellite Based Augmentation Services (SBAS), Trimble ViewPointTM RTX or, Virtual Reference Station (VRS) correction sources to suit the location and business requirements - providing accurate GNSS information almost anywhere on earth




BENEFITS

Small and Easy to Use



GNSS Receiver

High-sensitivity GNSS Receiver with on-board processing of all positioning data

Compatible with mulitple devices

iOS (Apple Certified), Android, Windows & Windows Mobile (WEHH)

Rugged

IP65 Environmental Protection and MIL-STD-810G ruggednes

Connectivity

ViewPointTM RTX support over L-band and mobile internet connection via bluetooth

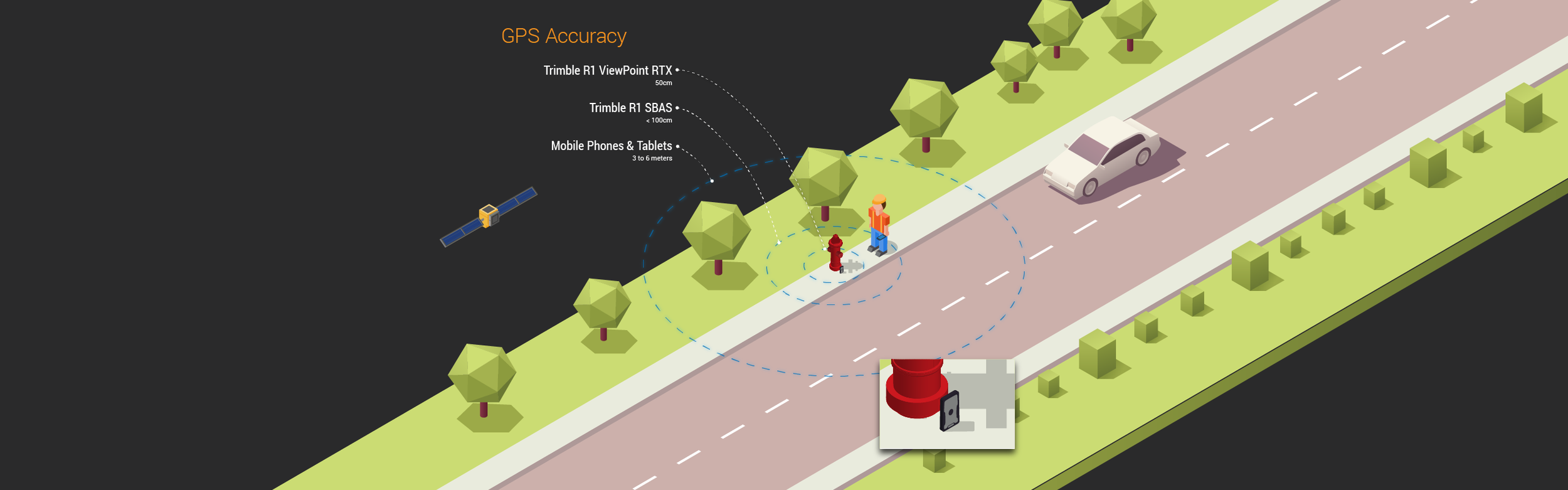

R1 Accuracy-01.png

Specifications



STANDARD FEATURES

GNSS

Sensor type: L1/G1 GNSS receiver and antenna
Systems: GPS, GLONASS, Galileo, Beidou, QZSS
Channels: 44-channel, parallel tracking
Correction sources: SBAS, ViewPoint RTX, QZSS, VRS SBAS:4-channel, parallel tracking WAAS, EGNOS, MSAS GAGAN, SBAS ranging
Receiver Protocols: NMEA 0183 v4.00, Binary
Update rate: 1 Hz
Time to first fix: 45s typically
Reacquisition: < 2s
Real time correction protocols: CMR,CMR+,CMRx RTCM 2.1, 2.2, 2.3, 3.0, 3.1
SBAS accuracy1: <100 data-preserve-html-node="true" cm
Code DGNSS accuracy (VRS / RTK)1: 75cm + 1 ppm HRMS
ViewPoint RTX1: 50 cm
HRMS Maximum speed: 1,850 kph / 1,150 mph / 999 knots
Maximum altitude: 9,000 m (29,520 ft)

INTERFACES

Port: Bluetooth 2.1 + EDR, USB 2.0 (charge/firmware update)
Bluetooth transmission: Class 2 (10m), iAP2 and 2.1 EDR
Bluetooth frequency: 2.400 - 2.485 GHz
Raw measurement data: Trimble GSOF, Binary
Communication status LED: Bluetooth status, GNSS, Corrected GNSS
Power status LED: Charging, charging (full), 3 stage battery status (>50%, 15 – 50%, <15%)

BATTERY AND POWER

Battery Type: Integrated Lithium-Ion
Battery Capacity: 3.7v 15Wh
Battery Life: 10+ hours
Charging Time: 5 hours (typical, with supplied charger)
External Antenna Voltage Output: 3 VDC
External Antenna Input Impedance: 50 Ohms

ENVIRONMENTAL

Water/Dust Ingress: IP65
Operation temperature: –20 °C to +60 °C (–4 oF to +140 oF)
Storage temperature: 30 oC to +70 oC (–22 oF to +158 oF)
Relative humidity: 95% non-condensing
Shock (non-operating): 1.2 m (4 ft) to plywood over concrete
Vibration: MIL-STD-810G Method 514.5 Procedure I Category 24
Maximum storage altitude: 12,192m(40,000ft)
Maximum operational altitude: 9,000 m (29,520 ft)

PHYSICAL

Enclosure Dimensions: 11.2 x 6.8 x 2.6 cm 4.4x2.7x1in
Weight: 187g (0.4 lb)
Power Connector: Micro-B USB Female
External Antenna Connector: SMB Female

INTERNAL ANTENNA

Frequency Range: L1, G1, L-Band (1535 MHz - 1610 MHz)

SUPPORTED PLATFORMS

iOS 7, iOS 8, Android (4.1 or greater),
Windows (7 or greater), WEHH (6.5x).

COMPLIANCE

FCC Part 15 (Class B device), CE Mark, RoHS

ACCESSORIES INCLUDED

Belt pouch/clip

PURCHASED SEPARATELY

Pole pouch
External antenna Soft Hat for antenna



“Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPhone or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPhone or iPad may affect wireless performance. iPad, iPhone and Retina are trademarks of Apple Inc., registered in the U.S. and other countries. iPad mini is a trademark of Apple Inc.

  1. Accuracy and reliability may be subject to anomalies due to multipath, obstructions, satellite geometry, and atmospheric conditions. Always follow recommended GNSS data collection practices. Specified ViewPoint RTX accuracy is typically achieved within 10 minutes.
