Built for work in the real world

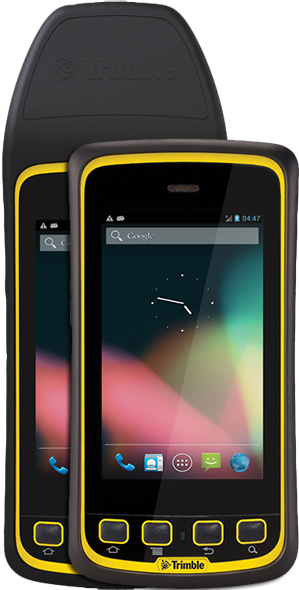

The Juno T41 handheld has voice, SMS text and 3.75G cellular data transfer capabilities on GSM cellular networks worldwide. You can upload and download data from the cloud using Wi-Fi or WWAN connections. The 8 megapixel camera can automatically include time and location data from the GPS receiver. The Juno T41 handheld includes a capable 1 GHz processor with 512 MB RAM to run software applications fast and reliably.

The Juno T41 is a rugged, all-in-one device that reduces total cost of ownership compared to durable or consumer-grade smartphones. Mobile workforce solutions based on a single device can be more efficient than requiring workers to repeatedly handle at least two: a rugged handheld computer and a cellular phone. Return on investment is also enhanced through increased efficiency from your work force: user applications can transfer data to and from the cloud, while they maintain voice communication with managers who can make faster, better decisions based on real-time information.




FEATURES

Mobilize your workforce



Rugged Smartphone Design

Work all day, inside and out, while staying connected with voice and data


Enhanced GPS Positioning

Navigate and collect data accurately in any environment

1D/2D Barcode
Scanning

Quickly record asset data by scanning a wide range of codes

Android and Windows OS

Run the software you need on your choice of operating system



Specifications



XGS MODEL FEATURES

1D/2D Barcode Imager

White light illumination and red LED-based aimer for ease of use
High-motion tolerance to deliver quick imaging responsiveness
Omni-directional reading capabilities for real world use conditions
Rapid Scanning Capability for high read rates no matter what the bar code angle or orientation is in relation to the unit
1D supported symbologies:
EAN/UPC, GS1 Databar (limited expanded & omni-directional), Code 39, Code 128, UCC/EAN 128, ISBN, ISBT, Interleaved/ Matrix/Industrial and Standard 2 of 5, Codabar, Code 93/93i, Code 11, MSI, Plessey, Telepen, postal codes (Australian Post, BPO, Canada Post, Dutch Post, Japan Post, PostNet, Sweden Post)
2D supported symbologies:
Data Matrix, PDF417, Micro PDF 417, Codablock, Maxicode, QR, Aztec

Real-Time Enhanced GPS

1-2 meter Real-time accuracy with no post-processing or subscription fees required
Supports GPS L1 band
Raw Data Output available for post-processing applications
Average cold start < 33 seconds; Average Warm Start < 3 seconds
Reliable performance in reduced signal environments

STANDARD Features

Processor: 800 MHz or 1 GHz, Texas Instruments DM3730
RAM: 512 MB
Flash Storage: 8, 16 or 32 GB
4.3” WVGA sunlight-readable Corning® Gorilla® Glass display
Integrated 3.75G cellular data, text and voice capability
8 megapixel camera with geo-tagging and dual LED flash
Bluetooth® 2.1 with Enhanced Data Rate
Wi-Fi (802.11 b/g/n)
2-year Standard Warranty

Operating Systems

Windows Embedded Handheld 6.5
Android 4.1 “Jelly Bean”

Environmental Specifications

Meets or Exceeds:
Water: Survives immersion at 6.6 ft (2m) for 1 hour (gray models), IEC-60529 IP-X8
Survives driving rain and water spray (yellow models), IEC-60529 IP-X5, water jet 12.5mm dia @ 2.5-3m
Dust: Protected against dust, IEC-60529 IP-6X, dust chamber with under-pressure
Drops: Survived multiple drops of 4 ft. (1.22m), MIL-STD-810G, Method 516.6, Procedure IV, Transit Drop
Operating Temperature: -22 ºF to 144 ºF (-30 C to 60 C), MIL-STD-810G, Method 502.5, Procedure I, II, III (Low Temp Operating -30 C); Method 501.5, Procedure I & II (High Temp Operating 60 C)
Storage Temperature: -40 ºF to 158 ºF (-40 C to 70 C), MIL-STD-810G, Method 502.5, Procedure I, II, III (Low Temp Storage -40 C); Method 501.5, Procedure I & II (High Temp Storage 70 C)
Temperature Shock: Cycles between -22 ºF and 144 ºF (-30 C and 60 C), MIL-STD-810G, Method 503.5, Procedure I-C
Humidity: 90% relative humidity with temperatures between 22 ºF and 144 ºF (30 C and 60 C), MIL-STD- 810G, Method 507.5, Procedure II
Altitude: 15,000 ft (4,572 m) at 73 °F (23 C) to 40,000 ft (12,192 m) at -22 °F (-30 C), MIL-STD-810G, Method 500.5, Procedure I, II & III
Vibration: General minimum integrity and loose cargo tests, MIL-STD- 810G, Method 514.6, Procedure I & II, Category 5
Solar Exposure: Survives prolonged UVB exposure, MIL-STD- 810G, Method 505.5, Procedure II
Chemical Exposure: Resistant to mild alkaline and acid cleaning solutions, fuel hydrocarbons, alcohols and common vehicle and factory machine lubricants
