Wireless Hydrant Pressure Monitoring

Wireless Communication: The power of every Telog HPR-32 hydrant pressure recorder is wireless data transfer capability.  Using wireless technology enables unmanned monitoring of remote sites as well as instant updates and alarm notifications.

Battery Power: All Telog hydrant pressure recorders have low power requirements so they can be battery operated. The Telog HPR-32 uses a single, user-replaceable D cell lithium battery. At a typical two calls per day, the battery will last up to five years.

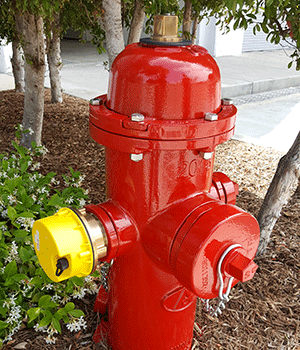

Packaging and Installation: Every hydrant pressure recorder from Telog is a low-profile, rugged unit that is easily installed by one person on a standard 2.5 inch hose nozzle outlet. For ease of mind an optional security cover can be used to prevent vandalism. Once installed, data is immediately available using the Telog Online Solution, Telogers for Windows or Telog Enterprise software.

Telog hpr-32

Telog hpr-32

Telog HPR-32 applications include:

  • Investigating pressure complaints
  • Fire flow testing
  • Pressure loss tests
  • Calibrating hydraulic models
  • Monitoring system pressures
  • Hydrant capacity testing
  • High speed sampling to 4 samples/sec

The HPR-32 is also available with impulse event capture capability. Click here for more information.



One Man Fire Flow Testing video

White Paper

Automated Wireless Monitoring of Distribution Systems



Articles


Monitoring Progress: Nailing Down Water Hammer And Its Implications

By Telog, A Trimble Company

If you don't know what a water hammer is, well, that's a big part of the problem. It's an all-too-frequent issue for water systems everywhere, striking in pipelines that are growing more susceptible to failure as they age.

Read More



Specifications

Recorder
Model: Telog HPR-32
Type: Single Channel pulse/event recorder with wireless modem
-- Range (psi): 100, 200, 300 (contact Telog for other ranges)
-- Over pressure (psi): 300, 600, 600
-- Burst pressure (psi): 850, 1000, 1000
-- Resolution: ±0.025% of full scale, 12-bit
-- Accuracy: ±0.25% of full scale at constant temperature
-- Temperature effect: ±0.015% of full scale per ºf

Recording
-- Sample rate: Programmable from 4/sec up to 8 hours
-- Data interval: Programmable from 1/sec up to 8 hours
-- Values saved: Selectable min, avg & max per interval
-- Memory: 128 Kbytes (~80,000 data values)

Communication
-- Local RS-232: 5 pin circular connector rated IP-67 Auto-selected baud rate to 19.2K
-- Cellular: Internal Telog WM/C embedded 1xRTT modem certified on Sprint & Verizon in USA WM/H HSPA modem certified on Bell in Canada Dual band internal antenna

Battery
-- Factory installed single 3.6V Lithium D cell, Saft LSH 20 or Equal
-- Life 3800 data calls to host Computer
-- Examples: 5 years @ 2 calls/day, 2 years @ 5 calls/day. 1 year @ 10 calls/day (@ 5 second sampling or less)

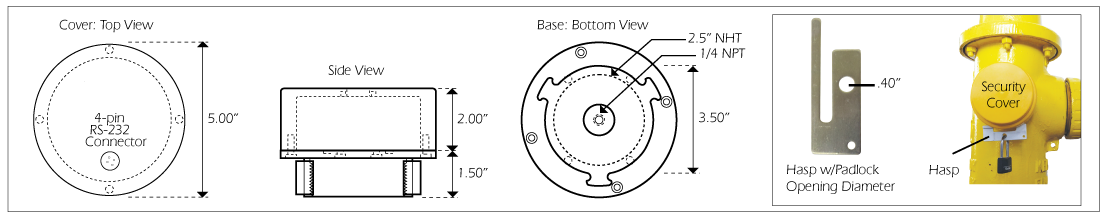

Environmental and Mechanical
 -- Temperature
    --- Operating: 14° to 149° F
    --- Storage: -40° to 149° F
  -- Humidity: 0-100% relative humidity
  -- Enclosure: NEMA 4x/IEC IP65
  -- Size: 5” diameter x 3.5”
  -- Thread*: Hydrant mount: 2.50” NHT standard. Contact Telog for non standard thread. Internal mount: 1/4” NPT

Support Software
-- Telog Online (Data Hosted Solution)
-- Telog Enterprise
-- Telogers for Windows
