AFC Mapper is a free application and workflow configured within the Trimble Unity platform. It helps water utilities bridge the gap between construction, mapping and maintenance management. It was specifically designed to leverage the power of Trimble, American Flow Control 2D barcodes and Esri technologies to automate mapping and asset management of hydrants, valves and related network assets.




Accurate asset information is the foundation for smart water management

Access key specifications

Record information that simply can’t be determined from ground level, such as, precise asset specifications and manufacturing information

Reduce accidental damage

Reduce torque and accidental damage during installation, using detailed information captured from the barcode

Efficient data collection workflow

Increasing efficiency and productivity in mapping AFC hydrants and valves during installation, using intelligent and simple data collection workflows and forms

Bring Your Own Device (BYOD)

Leverage your investment in tablets or smart phones, Trimble Unity supports various platforms with options for high accuracy GPS data collection (up to centimeter accuracy for GIS)



Collect authoritative data using the right tools, capabilities and workflows


Data Collection

Create and manage data collection jobs


Leverage 2D Barcodes

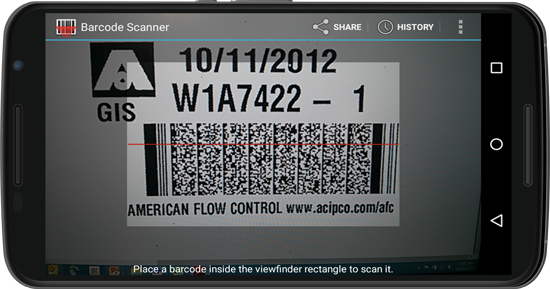

Scan AFC hydrant and valve 2D barcodes using the smartphone or tablet internal camera


Quick & Simple Data Entry

Automatically populate preconfigured AFC hydrant and valve data collection forms with data from the 2D barcodes


GPS Positioning

Capture GPS positions using the phone or tablet’s internal GPS receiver (if equipped)
Expected accuracy is 3+ meters


High Accuracy GPS Support

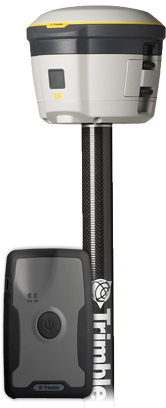

Option to use high accuracy Trimble external GNSS receivers that can pair with Android and iOS devices via Bluetooth (up to centimeter accuracy)


Attach Photos

Capture photos and attach to the AFC hydrant and valve data collection forms


Export Data

Export collected data in various formats including Shapefiles, Microsoft Excel and Esri File Geodatabase



What is available for free


Free registration and access to the Trimble Unity AFC Mapper application and workflow

Free access on Android and iOS phones and tablets

Out of box GIS-centric workflow for scanning AFC hydrant and valve 2D barcodes


View mapped hydrants and valves on a GIS map

Export collected data in various formats including Shapefiles, Microsoft Excel and Esri File Geodatabase.

Option to use Trimble’s high accuracy GNSS receivers




Do more with Trimble Unity

Upgrade to a full version of Trimble Unity at any time to take advantage of these additional features

Learn more about Trimble Unity

Various options for high accuracy GPS data collection

Extend the solution to map all water assets

Extend the solution to support asset maintenance, repair, condition assessment, meter deployment workflows

Build your own workflows and apps using the Trimble Unity app builder

Extend your back office enterprise systems to the field using GIS-centric workflows
